458 winchester magnum Login/Join

one of us
posted Hide Post
101% fill:


Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
Softer Linotype at lower velocity, 411-gr Red Bullet,
not bad:



It will be a little harder and heavier and not so brittle in "Alloy 25" water-dropped, powder-coat painted, and aged for a month.

But it will be hard to beat this one:


Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
Does a gas check and powder-coat paint somehow strengthen a cast bullet for pressure toleration
beyond what the BHN number indicates ?
Either that, or QuickLOAD is over-estimating pressure for the .458 WIN.
Maybe it is a bit of both ?

34 shots fired yesterday, no scope adjustments after the first four shots.
No fouling problems, an advantage of powder-coat-painted cast lead and smokeless.
No screw-loosening, an advantage of lighter recoil.

The last 5 shots with the 411-grainer at estimated 2036 fps MV and longer COL were very close to same POI as 407-grainer at 2170 fps MV and shortCOL with same scope setting.

I will not clean the rifle nor touch the scope and see where a slow-moving 543-grainer hits the target.
Fingers crossed that double-bullet regulation can be found.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
RIP

The gas check does make the base harder and resist gas erosion and deformation a bit, and as the late great Elmer Keith observed, that is the "steering end".

It looks like your approach is yielding very promising results.

As we have seen time after time, computer modeling tools are not gospel, only a guide to get one to the ballpark. Even the PressureTrace has some limits as well, as it doesn't totally accurately model pressures after the peak. I use it mostly to make sure that I don't blow up a barrel or melt cases.

I once had a .243-caliber Winchester 88 that routinely blew primers with any 100 grain bullet, even factory loads. I'm not talking cratering or flattening, it was outright pockets opening up and primers in the action. Anything 80 grains or lower and it was well behaved. The PressureTrace would have been a godsend with that rifle.


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
One of Us
Picture of Fury01
posted Hide Post
Rip,
I know the Gas check has the effect of "strengthening" a cast bullet because it both takes the big Initial Punch of the expanding gases and resists Gas going by on the trip up the barrel, thus stopping cutting of the softer lead alloy above it. I would guess that the full coating of Powder Coat decreases the resistance of the bullet to spin in the rifling and that is the essence of the pressure problem with Cast. Too much pressure and the alloy starts to pull itself apart. Some folks chalk that up to an "Cast has a low RPM limit" but I don't buy that theory. Good tough alloy with a Gas check and Powder Coat, properly sized, should stand the full range of velocities in the .458WM I would say. Same in the 35 Whelen and 30-06 too would be my thought, and I only use heavy for Caliber cast in both of those as well.


"The liberty enjoyed by the people of these states of worshiping Almighty God agreeably to their conscience, is not only among the choicest of their blessings, but also of their rights."
~George Washington - 1789

Posts: 2135 | Location: Where God breathes life into the Amber Waves of Grain and owns the cattle on a thousand hills. | Registered: 20 August 2002Reply With Quote
one of us
posted Hide Post
The Maz and Fury01,

I'll buy that !
So the PCP-GC "PREMIUM" cast bullet is not so limited by chamber pressure or MV regarding accuracy.
Probably as good as any jacketed or monometal bullet in that regard.
That jives with my .458 WIN experience so far.

Accuracy and velocity are no problems with appropriately sized, hardcast, powder-coat-painted, gas-checked bullets.

The thing is back to what the bullet can take on impact velocity with game.
Just like any other PREMIUM bullet of any type,
selected and loaded appropriately for the game.

Nice mushrooming can be had at 2200 fps with hardcast, RN or FN.
Great penetration can be had with an FN, hardcast, heavy bullet at 1300 fps.

The cast bullet holds its head high.
Proud of itself.

Teach a man to cast bullets and he will never run out of bullets. Smiler
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
How to slow the heavyweight FN down to 1300 fps in the mighty .458 WIN ?

The Hornady .458 WIN case is only 2 grains of water smaller than the Starline .45-2.6" case.
The Blackhorn 209 data for the .45-100 Sharps Straight should be good in the .458 WIN.
About Blackhorn 209:



patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
The BPCR data, Federal F-215 recommended for all of these loads with Blackhorn 209,
and use of filler where needed noted in footnotes:



Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
I forsee a shootoff between Blackhorn 209 and AA-2495 with .461"/ 543-gr FN hardcast, starting at 43.0 grains with each powder.
Might be close to 1300 fps.
If so, it will be a real elephant & buffalo load, in the .458 WIN(-)P, at 3.340" COL.
Ought to penetrate at least as well as the .458"/450-gr brass FN at 2400 fps in the .458 WIN+P.
Take your pick for elephant.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
About QuickLOAD start pressure for the .461"-sized PREMIUM cast bullet in the .458 WIN:
1160 psi is definitely closer to reality than 3625 psi.
Just subtract 75 fps
and subtract 8000 PSI
from the QuickLOAD prediction
to get a better estimation of MV and pressure of .458 WIN.
THROAT THROAT THROAT
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
QuickLOAD is interesting for comparing the barrel times of the light and fast bullet to the heavy and slow bullet,
using a given powder, such as AA-2495:

407-grainer at 2157 fps in a 25" barrel >>> 1.569 milliseconds
543-grainer at 1300 fps in a 25" barrel >>> 2.897 milliseconds

The slow bullet has almost twice the barrel time.

patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
One of Us
Picture of Fury01
posted Hide Post
Barrel time: Now think about the hold / Trigger break that our buddy Sharpsguy has to have to shoot those groups at the range he does it. That is pure Art, symmetry and form.


"The liberty enjoyed by the people of these states of worshiping Almighty God agreeably to their conscience, is not only among the choicest of their blessings, but also of their rights."
~George Washington - 1789

Posts: 2135 | Location: Where God breathes life into the Amber Waves of Grain and owns the cattle on a thousand hills. | Registered: 20 August 2002Reply With Quote
one of us
posted Hide Post
Barrel time is why I don't try to shoot for accuracy and impact point with the normal recoil reducing tricks. The gun is moving before the bullet leaves the muzzle (cables being unplugged from the PressureTrace just after peak pressure prove that one), but differently if you have it in a lead sled or with a big bag of shot behind the butt. The energy has to go somewhere, and it is almost certain to rotate the rifle upward as it can't move backward as fast.

When shooting for groups and POI, I use front and rear sandbags to steady the rifle, but also have my left hand between the forearm and front bag actively holding the rifle, and the butt firmly pulled into the shoulder.

Also, my personal philosophy is that if I can hold it together enough to get a good 5-round group with a .458, then other stuff like a .223 and .308 feel like a .22 LR by comparison. Big bore accuracy with hot loads require the utmost in aiming, trigger, and form discipline that smaller stuff doesn't. Also lower velocity loads require holding it steady that extra millisecond or so while the bullet is going down the barrel, they just don't tenderize the shoulder as much.

Interestingly, the only other platform that requires as much attention to shooting detail is a spring-piston air rifle.


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
This old dog here is still learning new tricks.
I never thought of the "follow-through" to the trigger squeeze before. tu2

Here is just a fun bit of numerology:

10-pound scoped .458 WIN with 2 loads, A and B.

A. 407-grainer @ 2170 fps with 72.0 gr powderXXX:
free recoil = 47.3 ft-lbs @ 17.45 fps, barrel time = 1.529 msec

B. 543-grainer @ 1300 fps with 43.0 gr powderXXX:
free recoil = 26.2 ft-lbs @ 12.97 fps, barrel time = 2.897 msec

hilbily GI = Gunsight Impulse = (Free recoil) X (barrel time)

A: 47.3 ft-lbs X 1.529 msec = 72.32 GI
B: 26.2 ft-lbs X 2.897 msec = 75.90 GI

Lower GI means easier accuracy.
Higher GI means greater need for concentration on trigger follow-through.

Compare to load C:

C. 600-grainer @ 2100 fps with 74.0 gr powderXXX:
free recoil = 82.0 ft-lbs @ 23.00 fps, barrel time = 1.645 msec
GI = 134.89
That will require some serious concentration on trigger follow-through,
and it might leave a mark.

patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
One of Us
Picture of 416Tanzan
posted Hide Post
quote:

B. 543-grainer @ 1300 fps with 43.0 gr powderXXX:
free recoil = 26.2 ft-lbs @ 12.97 fps, barrel time = 2.897 msec

A: 47.3 ft-lbs X 1.529 msec = 72.32 ft-lbs-msec
B: 26.2 ft-lbs X 2.897 msec = 75.90 ft-lbs-msec
hilbily


I am not exactly sure about how those calculations play out and what they mean for a shoulder. For example, energy, AKA work, would result from a curve of changing momenta pushing back on a person as the bullet proceeds from zero to muzzle-velocity exit. The energy would be the area of shape bounded by the curve of velocity/momentum for that bullet. If that shape were longer (more barrel time) then the momentum transfer would be slower and work effects would be dissipated. So I am not sure that multiplying the energy by the barrel time gives a point of comparison for something to be perceived as potentially equal. Maybe someone can help me out. It's been 50 years since university physics (and I did very well, back then, but 50 years have been spent in humanities since).


+-+-+-+-+-+-+

"A well-rounded hunting battery might include:
500 AccRel Nyati, 416 Rigby or 416 Ruger, 375Ruger or 338WM, 308 or 270, 243, 223" --
Conserving creation, hunting the harvest.

Posts: 4253 | Registered: 10 June 2009Reply With Quote
One of Us
posted Hide Post
If the setup at the bench allows the upper body to move somewhat freely with the rifle momentum, then the energy in recoil is dissipated over a longer period, thus to the senses appearing as less recoil effect than a lighter rifle with numerically similar recoil in KE, but quicker (less time) in momentum. For example, my 9.3 x 62 is much "quicker" in recoil (momentum) than the .458, thus giving the impression of greater recoil while the physics say they should be the same in KE (from particular loads in each). The .458 weight is 10.3 lbs (empty) and the 9.3 x 62 is 7.4 (empty) - each with scopes.

Shooting offhand/over sticks allows the momentum to be spread over more time than in typical bench-type, thus mitigating somewhat the effects of momentum. According to some theorists, that might affect poi. I don't know how any such effect on accuracy could be measured. Some have claimed that the use of a Lead Sled could change poi from that of a more free sitting position at the bench, or standing.

Many, many years ago I tested that using my bear load (400gr Speer at 1865 fps MV). I sighted it dead-on at 100 yds from the bench. I then practised, standing in an offhand position until I could put three of those inside a 3" circle at 100 yds. With practice I could every time. When it came time to shoot a bear at 100, the first bullet went where aimed. The second, from a standing position on a 12' high platform, also went where aimed.

So, from a practical standpoint, as long as we can hit where we're aiming from any position, I don't think finite details matter. The longer we hold a rifle from an offhand or free position, the less accurate we are likely to be due to muscle fatigue, wind, mind, or a multitude of other potential interferences. I still watch guys at our range spend upwards of 1 to 2 minutes before firing a single shot downrange at a target, thinking that will somehow improve accuracy.

From my CZ 455 bolt action in .22LR, I can, with the right ammo (CCI mini-mag), shoot 10 into moa within a minute -- when I'm rested and the wind isn't blowing.
Of course, recovery from recoil is in milliseconds, not minutes! Wink

Bob
www.bigbores.ca


"Let every created thing give praise to the LORD, for he issued his command, and they came into being" - King David, Psalm 148 (NLT)


Posts: 849 | Location: Kawartha Lakes, ONT, Canada | Registered: 21 November 2008Reply With Quote
one of us
posted Hide Post
Bob is quite right on not taking forever to get your shots off. I tend to fire as soon as I have steady crosshairs on the target, though I may space out loading rounds to avoid too much barrel heating at times. I do like to minimize the time a round sits in a warm chamber if possible as well.

I have loaded up another 20 of the Lehigh 528 grainer "Torpedo" loads with 77 grains of H335, and decided to add a few more instrumented firings to test out the effect of a primer change. The new rounds are 10 each with a new production Fed 215 primer and an additional 10 with new production Winchester WLRM.

I am especially interested in the possible effect the the initially used 20+ year old Fed 215s had and if consistency and ignition is faster with new ones, as well as the effect of Fed vs Win formulations.


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
The game with getting "GI" (Gunsight Index) by multiplying recoil KE times barrel time was subsequent to noting
that the .461 Gibbs No. 2 Target and Express loads shot to same POI at 100 yards with same sight setting.
Smokeless loads duplicating 570-grainer at 1300 fps and 360-grainer at 1700 fps in QuickLOAD allowed GI calculation and they were indeed within 1 unit of being identical.
I am unable to estimate the barrel times of the BP loads.

The one trial recently that I did of the WLRM primer in W-W brass versus F-215 primer in Hornady brass was only 3 shots with each combo,
same bullet, COL, and powder charge.
The F-215 plus Hornady combo gave better uniformity and slightly higher velocity.

Using the same brass with both primers would have been a better test.
Should be interesting, jawohl.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum


Using the 2 different primers

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
RIP,

You gave me an idea. I do have a few "WW-Super" cases that have been primed with "new" F-215 primers that I could toss in as another test. All others are once-fired Hornady (15) and virgin (5).

Inside the case, the Horndady's have a different shape, with a really thick area of brass above the belt a bit, with what looks like a 5/16 or so inch relief near the flash hole. It's kind of like a combustion chamber. The WW does not have any of that. I'll see if I can get some pics of them uploaded.

UPDATE:

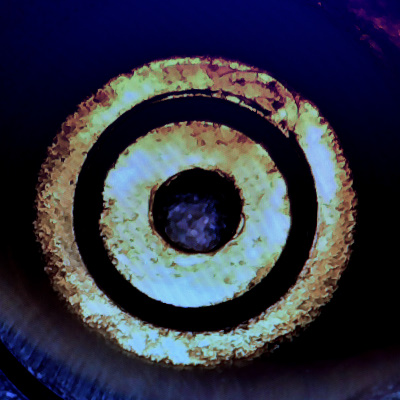

Hornady case interior pic:

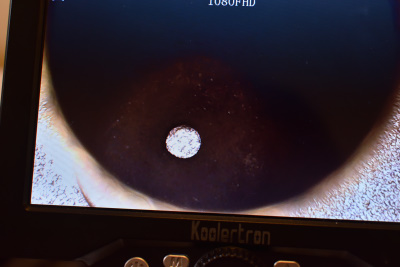

WW case



NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
A hacksawing of cases is in order.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
Quick question - would there be any interest in traces using Ramshot TAC or AA-2230? I just got in a pound of 2230 and 8 pounds of TAC. Maybe a series of 2230, H-335, and TAC with Horndady DGS at standard length, maybe? I expect all 3 to be pretty similar in burn rate but it could be an interesting experiment with powders that I also find the most useful for making up the little-bitty 5.56x45 NATO rounds for my AR.


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
The Maz,
Any pressure trace by you is a great idea, especially any done with AA-2230 which showed a serious secondary pressure spike in the 5.56x45 NATO,
in that article 416Tanzan linked.

Here is the Hornady versus Winchester hacksawing:




I reckon I am going to be using my Winchester brass for .458 WIN(-)P loads.
Will use the Hornady stuff for .458 WIN+P loads.

Must say that the Hornady looks stronger, and maybe that "combustion chamber" pointed out by The Maz
would indeed concentrate the primer fire for better initiation of propellant burn.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
Speaking of .458 WIN(-)P loads,
here is my latest bullet for copycatting the .461 Gibbs No.1/No.2 ballistics, mould is on the way:



Cast in Alloy 25 it will be < 570 grains and brought back up to > 570 grains by adding the gas check and powder-coat paint.
Alloy 25 diameter will be 0.463" to 0.464" after painting,
and will be sized to .461".
Will be seeing where they hit at low speed, about 1300 fps,
compared to the "Express" 407-grainer at about 2150 fps.
All at 3.340" or shorter COL, most likely.
Quite gentlemanly.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
RIP,

That Hornady case is designed to take massive amounts of pressure, as you can see with it getting thicker over the belt. The head is thick and there is no thin area anywhere near the bolt face. The WW, on the other hand, is thin at the top of the belt.

Exactly as I observed with non-destructive testing!

When Hornady is selling cases again in .458, I am in!


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
One of Us
Picture of crshelton
posted Hide Post
Gents, thanks for good stuff on brass cases and pressure traces. Smiler I will be interested to see your TAC pressure traces.

WRT TAC traces, all my .405 WCF 400 grain Woodleigh TAC loads were considered "heavy" and were measured to within 1/10 grain, poured slowly (10 second count) into 24 inch drop tube into primed Hornady cases. The primers were Federal GM215M (match magnum) and velocity variations were VERY low. Slow and tedious work, but results were important for DG use.


NRA Life Benefactor Member,
DRSS, DWWC, Whittington
Center,Android Reloading
Ballistics App at
http://www.xplat.net/

Posts: 2294 | Location: Republic of Texas | Registered: 25 May 2009Reply With Quote
One of Us
Picture of Fury01
posted Hide Post
Pressure traces are very cool and appreciated. I have used some TAC in both the 458wm and the Whelen as I too had an 8 pounder. Didn’t chrono anything but groups opened up in the 458 at the low pressures I was running. TAC is very fine grained. Smallest I’ve ever used. The old Dillion rl450b spread it around a bit. I went back to aa2015.


"The liberty enjoyed by the people of these states of worshiping Almighty God agreeably to their conscience, is not only among the choicest of their blessings, but also of their rights."
~George Washington - 1789

Posts: 2135 | Location: Where God breathes life into the Amber Waves of Grain and owns the cattle on a thousand hills. | Registered: 20 August 2002Reply With Quote
One of Us
Picture of crshelton
posted Hide Post
Fury01
You are right on with the fine grain observation. That is one reason for using TAC in certain cases Smiler - pack more energy into a small area.

TAC compresses VERY well in the 24 inch drop tube because it is fine grained and if lit off with the right primer, you get a fast clean burn.


NRA Life Benefactor Member,
DRSS, DWWC, Whittington
Center,Android Reloading
Ballistics App at
http://www.xplat.net/

Posts: 2294 | Location: Republic of Texas | Registered: 25 May 2009Reply With Quote
One of Us
Picture of Fury01
posted Hide Post
I had satisfactory performance with TAC with some 458wm and 35 Whelen loads & Cast using Dacron Filler, but it wasn't as good as AA 2015. I also had some satisfactory performance in the 30-06 with Cast and light loads but I don't have a case that I can come close to filling up with TAC. I have seen some 35 whelen with Jacketed bullet loads that were pretty smokin' as they say but the pressures must have been smokin' as well. I used AA 2015 published load from Barnes manual #1 to get a 225 X bullet to 2821 in the Whelen for a season. I decided that I just did not want to push my old Whelen that hard though the 225 X at that speed killed like the Hammer of Thor. I have since went to the 25 Hornady Spire point with Varget at 2550-2600 in my 25.5" barrel I would suspect. Never chrono'ed them. I hope to ventilate a bull elk this fall with that.


"The liberty enjoyed by the people of these states of worshiping Almighty God agreeably to their conscience, is not only among the choicest of their blessings, but also of their rights."
~George Washington - 1789

Posts: 2135 | Location: Where God breathes life into the Amber Waves of Grain and owns the cattle on a thousand hills. | Registered: 20 August 2002Reply With Quote
one of us
posted Hide Post
quote:
Originally posted by The Maz:
RIP,

That Hornady case is designed to take massive amounts of pressure, as you can see with it getting thicker over the belt. The head is thick and there is no thin area anywhere near the bolt face. The WW, on the other hand, is thin at the top of the belt.

Exactly as I observed with non-destructive testing!

When Hornady is selling cases again in .458, I am in!

Let it be known that I hacksawed that new-unfired Hornady case long ago.
The once-fired W-W Super case was hacksawed yesterday,
and oh! The pain of it !
I don't want to destroy any more !
A review of my nondestructive findings on averages of 5 cases each of 3 brands of .458 Winchester Magnum brass:
brass weight in grains / water capacity in grains

Hornady Manufacturing Co.: 242.3 / 94.3

Remington-Peters: 236.1 / 94.2

Winchester-Western: 238.5 / 94.4

Not so strange, but true.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
Member Hyak55171 has been catching Speer .458-cal/ 400-gr FNSN bullets in water jugs.
Starting about 1800 fps from his .45-70 Govt.
(the Elmer Keith Memorial Load approximating that would be 53 grains of IMR-3031 in some rifles),
it is a classic:







So the Speer 400-grainer at about 1800 fps is a dandy "Express" load that Selous could have used to greater effect
than his paper-patched hollow-pointed 360-grainers
at about 1700 fps.
Smokeless and jacketed ain't so bad afterall,
using an 18"-barreled, .45-70 Govt., lever action repeater to better a 28"-barreled BPCR,
at least for the "Express" loads.
Now, can a .458"/ 570-grainer with BC of .500 be sent down range at 1250 fps from the Marlin Guide Gun with 18" barrel ?
That would be an interesting smokeless load with a gas-checked cast bullet.
Oh heck, I would settle for a Woodleigh .458"/ 550-grain RN SP with it's meplat flattened, for low-BC, close range work.
1250 fps would be good enough for that.
Cool
And of course, all of that and more is is possible with the .458 WIN(-)P.

The .458 Lott has been resoundingly trounced by the .458 WIN+P at COL of no more than 3.600" and often less.
.458 WIN+P at 3.340" COL will do any elephant hunting.
3.800" COL is available for trick shooting, but unnecessary with "normal" hunting bullets.
The Lottites have tucked their tails (and their "tales", i.e., lies) and gone into hiding.
horse

Time to join the .45-70 Govt. crowd for some effective, no-dramas loads with the .458 WIN(-)P. archer
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
The Legend grows. THE LEGEND is THE MISSION, the .458 Winchester Magnum.

Next up will try 43.0 grains each of

Blackhorn 209 ? 1400 fps ?

AA-2495 ? 1300 fps ?

AA-5744 ? 1700 fps ?

All will use filler with the 543-grain FNGC 3.340" COL
just to see where they land on the target compared to the 407-grain bugholer at 2170 fps and 3.260" COL.
It's a start at double-bullet regulation.
There is also a 570-gr FNGC on the way for this purpose.
patriot
.458 WINCHESTER MAGNUM PERFECTION
Non Illegitimi Carborundum

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
one of us
posted Hide Post
RIP,

Please never murder a 458 case like that in the future! For the love of God, man, only cut open a case that is otherwise dead!

Just kidding a bit, sir. Your sacrifice for THE MISSION is duly noted and very much appreciated.

Unless anyone has an issue, I propose to test with a start of 70 grains of H335, 2230, and TAC, going up 1 grain at a time with the 480 Hornady DGS bullets, at a COAL of 3.34 to get a good baseline.

Any thoughts or ideas are appreciated.


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
And RIP...

May I suggest a new sub-motto for THE MISSION, sir?

In maxima potentia parvum spatium

That is Latin for "The most power for the space". It so works for what we are doing here!


NRA Life Member
testa virtus magna minimum

Posts: 345 | Location: Pittsburgh, PA, USA | Registered: 01 February 2001Reply With Quote
one of us
posted Hide Post
The Maz,

Great plans for any pressure tracings you can do, it will be gilding on the lilly.

Great Latin motto too.
I hereby adopt it for THE MISSION.
Getting rid of my phony Latin.
Adding a second line to yours too.
My high school Latin is rusty so pending a check for proper grammar,
I hope it now says:

"The most power for the space.
It came and conquered all."
(The Julius Caesar of cartridges.) rotflmo

Pronounced in Classical Latin, no Church Latin.
The "V" is pronounced like in German, like an English "W."
Like the Romans would write it: .458 VIN+P

Got rained out on the shooting past two days ...
patriot
.458 Winchester Magnum Perfection
In maxima potentia parvum spatium.
Id venit et vicit omnis.

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
One of Us
posted Hide Post
quote:
Originally posted by The Maz:
RIP,

Please never murder a 458 case like that in the future! For the love of God, man, only cut open a case that is otherwise dead!

Just kidding a bit, sir. Your sacrifice for THE MISSION is duly noted and very much appreciated.

Unless anyone has an issue, I propose to test with a start of 70 grains of H335, 2230, and TAC, going up 1 grain at a time with the 480 Hornady DGS bullets, at a COAL of 3.34 to get a good baseline.

Any thoughts or ideas are appreciated.


I'd be very interested in those results! According to Barnes #4, H335 and TAC are nearly identical in results, and a bit slower in burn rate than 2230.

With an older lot of AA2460, 80 grs gave 2206 fps, and 78 grs of H335 gave 2204 fps for the 500gr Hornady from my CZ550 with a 25" barrel. So 2460 might be a tad slower than H335.

RIP has gotten very good results from both Accurate powders since their reformation. If possible, it might be good to include AA2460 in those tests.

Bob
www.bigbores.ca


"Let every created thing give praise to the LORD, for he issued his command, and they came into being" - King David, Psalm 148 (NLT)


Posts: 849 | Location: Kawartha Lakes, ONT, Canada | Registered: 21 November 2008Reply With Quote
one of us
posted Hide Post
Amen, Brother Bob.
I have been enjoying your recent sermons,
especially this part:

quote:

Moose-size game cartridges compared – P3
... finally: The .458 Winchester Magnum. I choose the former 400gr X-Bullet since Barnes doesn’t make a 400 TSX, and for some unknown reason apparently doesn’t plan to. Because I still have enough of the 400gr X-Bullets to make a trek into the vast regions of Northern Ontario for a big bull moose, that 400gr would go with me.

BC = .457

SD = .272

MV= 2590 fps/5957 ft=lbs/267 MTE

100= 2403 fps/5127 ft-lbs/230 MTE

200= 2224 fps/4390 ft-lbs/197 MTE

300= 2052 fps/3739 ft-lbs/168 MTE

400= 1888 fps/3167 ft-lbs/142 MTE

500= 1734 fps/2669 ft-lbs/120 MTE

*That was an actual load from my current Ruger No.1 .458 Winchester Magnum with a 24″ Mag-na-ported barrel. And it would shoot flat enough to make any shot to 500 yards reasonable on a 1000 to 3000 lb critter.

When in my 60’s, recoil on the order of 48.5 ft-lbs with the Mag-na-ports would have been normal. Today, closing in on 85, I’d not have a problem if shooting from sticks or off-hand. From the bench, about six or seven is about all I want to deal with in one sit down.

There you have it. The only other true Big Bores listed in the common reloading manuals that can match or surpass that load for distance shooting is the .416 Weatherby and .460 Weatherby. But the cost in recoil, weight and $$$ might be too much for the average sportsman. The .416 Weatherby will shoot the 400gr TSX at 2600 fps from a 26″ barrel, but with a BC of only .392 within 50 yards it has fallen behind my 400gr X-Bullet load for the .458 Winchester Magnum with it 24″ barrel. From that point on it only gets worse! The Ruger #1 in .458 WIN shoots flatter and hits harder at all ranges! The .460 WBY can beat my Ruger shooting the 450gr at 2677 fps but the BC of that bullet is only .369 vs .457 for the 400-X, so again, the .458 load from my rifle shoots flatter with only 62% of the recoil found in the .460, and more than plenty for a 3000 lb animal at 500 yards!

All the others: the 404 Jeff, the .500s and the .577 NE fall behind past 300 yards. Apart from the “Jeff”, the others fail as a “serviceable” all-purpose, large-game-soft-skinned cartridge due to weight, limited range and recoil.

The 400gr X-Bullet was my favorite for the .458 Winchester Magnum. Sad, that it’s no longer available.

What about the .458 Lott, surely it’ll equal or better the ballistics of the .458 Winchester Magnum, will it not?

Not really — for evidence and reasons go to: http://www.accuratereloading.com Accurate Reloading Forums/BIG BORES/.458 Winchester Magnum. And the Lott has fallen somewhat out of favor in recent months as the .458 Winchester Magnum is experiencing a resurgence of interest and use.

And what about BP rifles? Sure, they would work very well on moose-size critters, but the range is limited unless you are a specialist in rainbow trajectories!



That’s it for “Moose-size game cartridges compared”.

See ya next time…

Shalom

BOB MITCHELL
www.bigbores.ca

patriot
.458 Winchester Magnum Perfection
In maxima potentia parvum spatium.
Id venit et vicit omnis.

Posts: 28032 | Location: KY | Registered: 09 December 2001Reply With Quote
One of Us
Picture of 416Tanzan
posted Hide Post
quote:
Originally posted by RIP:
Amen, Brother Bob.
I have been enjoying your recent sermons,
especially this part:

quote:

Moose-size game cartridges compared – P3
... finally: The .458 Winchester Magnum. I choose the former 400gr X-Bullet since Barnes doesn’t make a 400 TSX, and for some unknown reason apparently doesn’t plan to. Because I still have enough of the 400gr X-Bullets to make a trek into the vast regions of Northern Ontario for a big bull moose, that 400gr would go with me.

BC = .457

SD = .272

MV= 2590 fps/5957 ft=lbs/267 MTE

100= 2403 fps/5127 ft-lbs/230 MTE

200= 2224 fps/4390 ft-lbs/197 MTE

300= 2052 fps/3739 ft-lbs/168 MTE

400= 1888 fps/3167 ft-lbs/142 MTE

500= 1734 fps/2669 ft-lbs/120 MTE

*That was an actual load from my current Ruger No.1 .458 Winchester Magnum with a 24″ Mag-na-ported barrel. And it would shoot flat enough to make any shot to 500 yards reasonable on a 1000 to 3000 lb critter.

When in my 60’s, recoil on the order of 48.5 ft-lbs with the Mag-na-ports would have been normal. Today, closing in on 85, I’d not have a problem if shooting from sticks or off-hand. From the bench, about six or seven is about all I want to deal with in one sit down.

There you have it. The only other true Big Bores listed in the common reloading manuals that can match or surpass that load for distance shooting is the .416 Weatherby and .460 Weatherby. But the cost in recoil, weight and $$$ might be too much for the average sportsman. The .416 Weatherby will shoot the 400gr TSX at 2600 fps from a 26″ barrel, but with a BC of only .392 within 50 yards it has fallen behind my 400gr X-Bullet load for the .458 Winchester Magnum with it 24″ barrel. From that point on it only gets worse! The Ruger #1 in .458 WIN shoots flatter and hits harder at all ranges! The .460 WBY can beat my Ruger shooting the 450gr at 2677 fps but the BC of that bullet is only .369 vs .457 for the 400-X, so again, the .458 load from my rifle shoots flatter with only 62% of the recoil found in the .460, and more than plenty for a 3000 lb animal at 500 yards!

All the others: the 404 Jeff, the .500s and the .577 NE fall behind past 300 yards. Apart from the “Jeff”, the others fail as a “serviceable” all-purpose, large-game-soft-skinned cartridge due to weight, limited range and recoil.

The 400gr X-Bullet was my favorite for the .458 Winchester Magnum. Sad, that it’s no longer available.

What about the .458 Lott, surely it’ll equal or better the ballistics of the .458 Winchester Magnum, will it not?

Not really — for evidence and reasons go to: http://www.accuratereloading.com Accurate Reloading Forums/BIG BORES/.458 Winchester Magnum. And the Lott has fallen somewhat out of favor in recent months as the .458 Winchester Magnum is experiencing a resurgence of interest and use.

And what about BP rifles? Sure, they would work very well on moose-size critters, but the range is limited unless you are a specialist in rainbow trajectories!



That’s it for “Moose-size game cartridges compared”.

See ya next time…

Shalom

BOB MITCHELL
www.bigbores.ca

patriot
.458 Winchester Magnum Perfection
In maxima potentia parvum spatium.
Id venit et vicit omnis.


Bob and RIP, שלום לכם shalom to you, εἰρήνη ὑμῖν "jambo" na salama kabisa

I appreciate all of this.

In addition,
quote:
The only other true Big Bores listed in the common reloading manuals that can match or surpass that load for distance shooting is the .416 Weatherby and .460 Weatherby. But the cost in recoil, weight and $$$ might be too much for the average sportsman.


You guys need to remember that the special characteristics of the 458 only come to the surface through handloading. When a person handloads, as we all should, the tables change.
The 416 Rigby in a plain-Jane CZ sends a 350gn projective down-field with a .444BC and a .289SD at OVER 2800 fps.
That is huge for the moose and elk hunter. Recoil is similar or less than the 458. You want down range numbers?

Here are some for 2820fps and 3000 ft elevation:
000 yards with 2820fps and 6179 ft#
100 yards with 2637fps and 5402 ft#
200 yards with 2461fps and 4704 ft#
300 yards with 2291fps and 4079 ft#
400 yards with 2129fps and 3520 ft#
500 yards with 1973fps and 3024 ft#
It gets better at higher elevation, of course.

I would have to classify this as a fantastic big bore, big game cartridge. 400-grainers are available, but without the fantastic flatness for a bigbore.

Course, in my old age, I might rather carry a lightweight 416 Ruger, but those are the compromises one makes. The Ruger, whether with a 23" or 20" barrel, is flat enough and with enough punch to put most any meat on the table. Just saying. tu2


+-+-+-+-+-+-+

"A well-rounded hunting battery might include:
500 AccRel Nyati, 416 Rigby or 416 Ruger, 375Ruger or 338WM, 308 or 270, 243, 223" --
Conserving creation, hunting the harvest.

Posts: 4253 | Registered: 10 June 2009Reply With Quote
One of Us
Picture of Ready Aim Shoot
posted Hide Post
Wow what a thread.I love the 458 Win and Lott.

Posts: 143 | Registered: 21 July 2020Reply With Quote
One of Us
Picture of Fury01
posted Hide Post
Ready Aim Shoot,
We allow loving the 458WM and the Lott here as we have been commanded to Love our Neighbor. Welcome Neighbor! Here is the full meaning of that BTW from Leviticus 19. Thought I would share that in context of all the vitriol / Hate, spreading across our world in the name of Peace.

Love Your Neighbor as Yourself
9 “When you reap the harvest of your land, you shall not reap your field right up to its edge, neither shall you gather the gleanings after your harvest. 10 And you shall not strip your vineyard bare, neither shall you gather the fallen grapes of your vineyard. You shall leave them for the poor and for the sojourner: I am the Lord your God.

11 “You shall not steal; you shall not deal falsely; you shall not lie to one another. 12 You shall not swear by my name falsely, and so profane the name of your God: I am the Lord.

13 “You shall not oppress your neighbor or rob him. The wages of a hired worker shall not remain with you all night until the morning. 14 You shall not curse the deaf or put a stumbling block before the blind, but you shall fear your God: I am the Lord.

15 “You shall do no injustice in court. You shall not be partial to the poor or defer to the great, but in righteousness shall you judge your neighbor. 16 You shall not go around as a slanderer among your people, and you shall not stand up against the life[a] of your neighbor: I am the Lord.

17 “You shall not hate your brother in your heart, but you shall reason frankly with your neighbor, lest you incur sin because of him. 18 You shall not take vengeance or bear a grudge against the sons of your own people, but you shall love your neighbor as yourself: I am the Lord.


"The liberty enjoyed by the people of these states of worshiping Almighty God agreeably to their conscience, is not only among the choicest of their blessings, but also of their rights."
~George Washington - 1789

Posts: 2135 | Location: Where God breathes life into the Amber Waves of Grain and owns the cattle on a thousand hills. | Registered: 20 August 2002Reply With Quote
  Powered by Social Strata Page 1 ... 204 205 206 207 208 209 210 ... 235



Copyright December 1997-2023 Accuratereloading.com


Visit our on-line store for AR Memorabilia
