Squires Bingham Model 20 carbine explained
 Login/Join

One of Us
posted

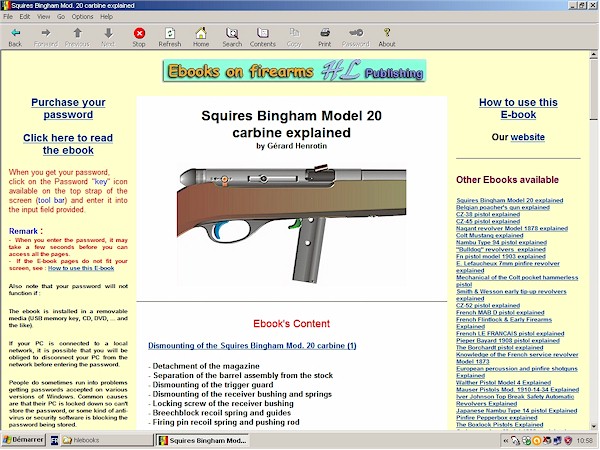

Just released at HLebooks.com , a new downloadable ebook on the Squires Bingham model 20 carbine in .22 LR

The download page is here: http://www.hlebooks.com/ebook/squiresE.htm

Android version (Mobile device application) : https://play.google.com/store/...om.hlebooks.squiresE

Many other ebooks on various firearms are available here : http://hlebooks.com


Content of the ebook :

Dismounting of the Squires Bingham Mod. 20 carbine (1)
- Detachment of the magazine

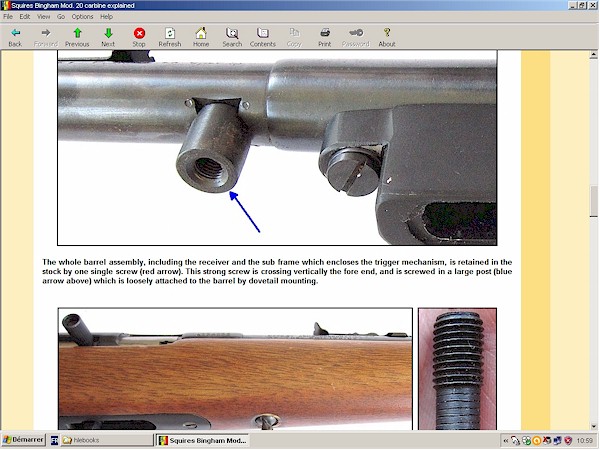

- Separation of the barrel assembly from the stock
- Dismounting of the trigger guard
- Dismounting of the receiver bushing and springs
- Locking screw of the receiver bushing
- Breechblock recoil spring and guides
- Firing pin recoil spring and pushing rod
Dismounting of the Squires Bingham Mod. 20 carbine (2)
- Dismounting of the cocking lever
- Disassembling of the cocking lever
- Removal of the breechblock from the receiver
- Disassembling of the breechblock components

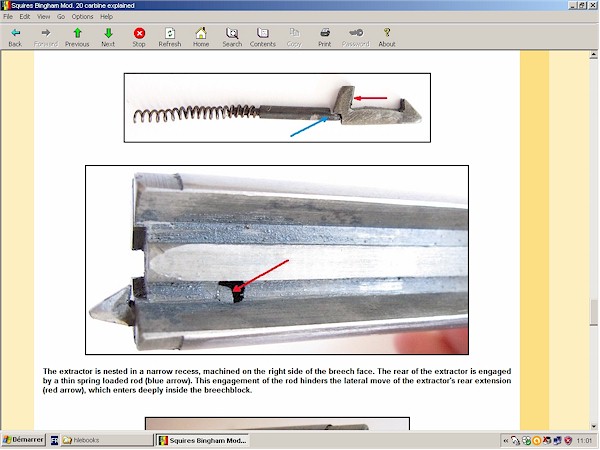

- Dismounting of the extractor
Dismounting of the Squires Bingham Mod. 20 carbine (3)
- Dismounting of the manual safety
- Index steel ball
- Reassembly tip for the manual safety
- Dismounting of the trigger assembly
- Disconnector and return spring
Dismounting of the Squires Bingham Mod. 20 carbine (4)
- Separation of the sub-frame from the receiver
- Dismounting of the sear return spring
- Dismounting of the magazine catch
- Dismounting of the sear
- Dismounting of the rear sight
- Dismounting of the front sight

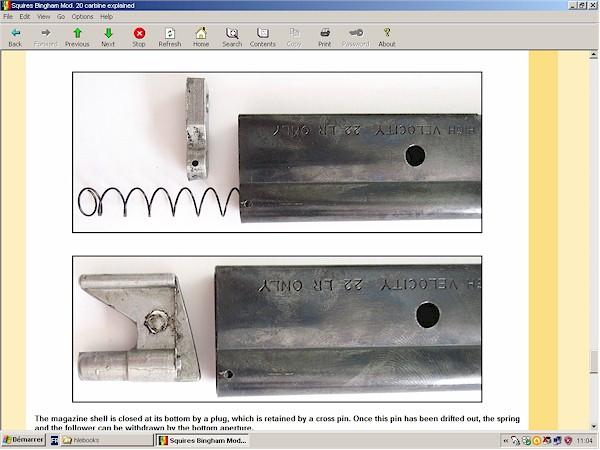

- Dismounting of the magazine
- Detail of the components by Gun Parts corporation
Reassembly tips
- Reinstallation of the breechblock inside the receiver
- Breechblock stopped by the disconnector
- Firing pin in abutment against the disconnector
- Reinstallation of the receiver bushing
Functioning of the Squires Bingham Mod. 20 carbine (1)
- Semi-automatic breech bolting
- Recoil spring telescopic guide

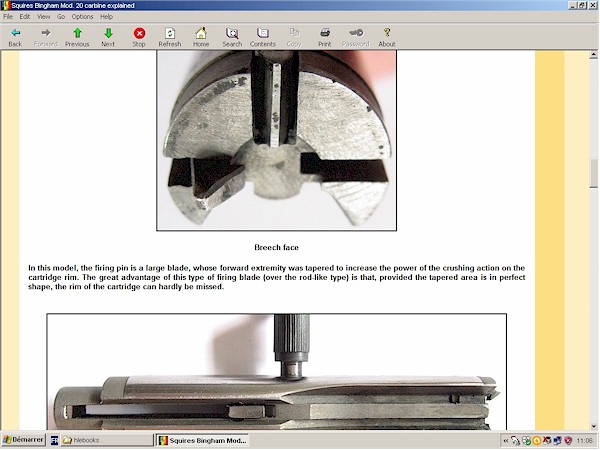

- Cocking of the firing pin

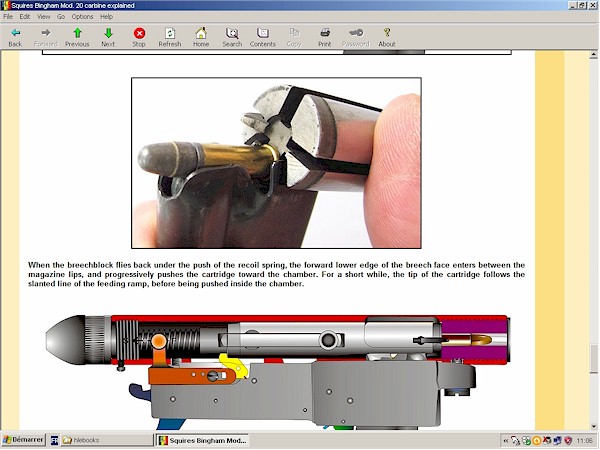

- Chambering of a cartridge
Functioning of the Squires Bingham Mod. 20 carbine (2)

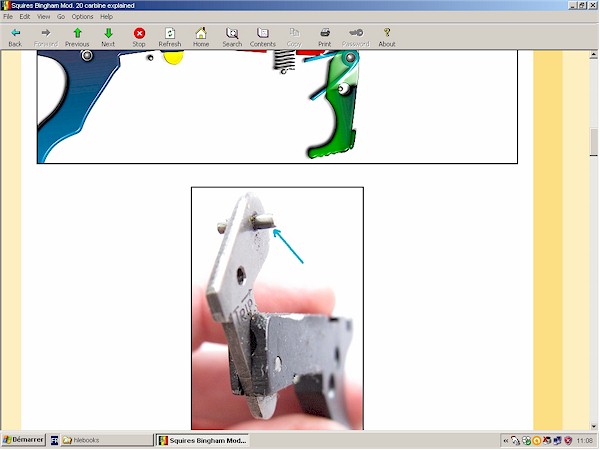

- Functioning of the trigger

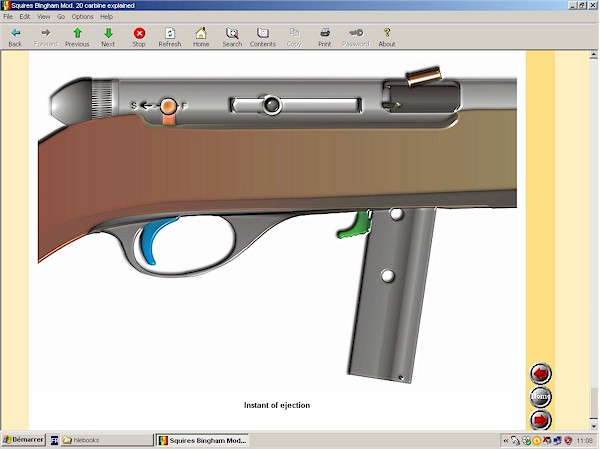

- Extraction and ejection of the cartridge shell
Functioning of the Squires Bingham Mod. 20 carbine (3)

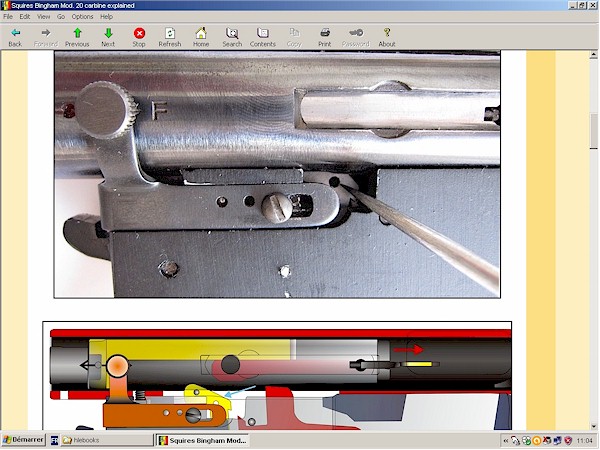

- Principle of disconnection explained
- Disconnection upon an ill-chambered cartridge
- Disconnection on recoil of the breechblock

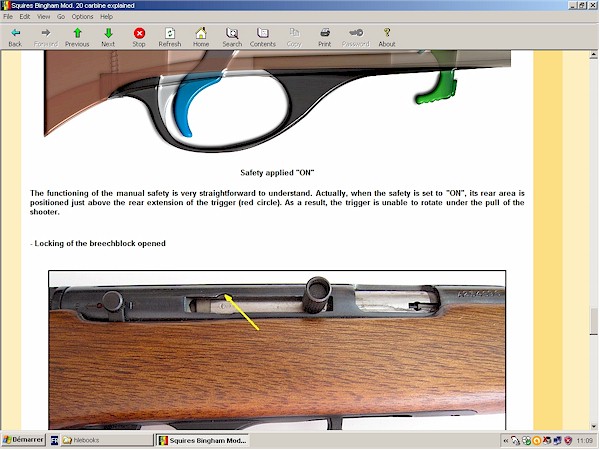

- Functioning of the manual safety
- Locking of the breechblock opened
- Shell deflector and scope
Markings and variations of the Squires Bingham Mod. 20

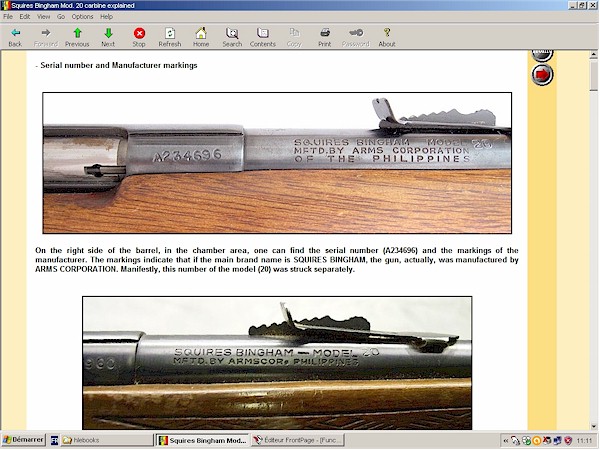

- Serial number and Manufacturer markings
- Company profile
- Importer and caliber markings
- Additional Belgium markings
- Belgian date codes for on foreign firearms
- Improved version of the Model 20 carbine
- Model 20 A "Squibman"
- Squires Bingham model M1600
- Current Model 20-C1 offered by Armscor (2015)























Posts: 42 | Registered: 26 October 2007Reply With Quote
