One of Us |

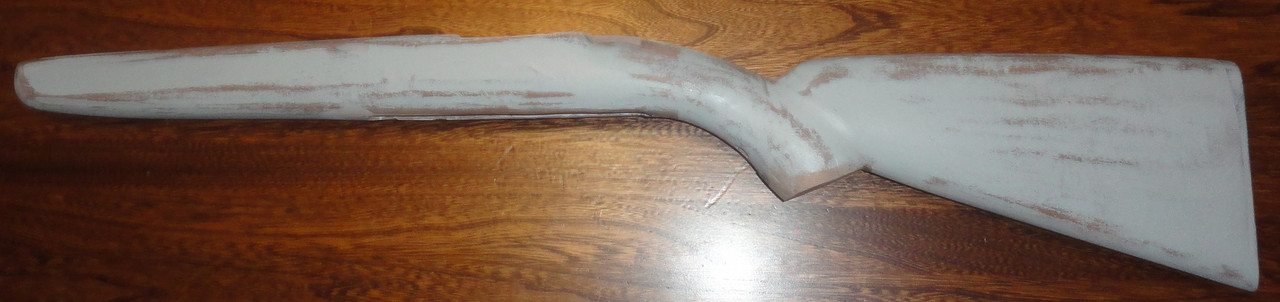

Here is my pattern in the basic overall shape stage. Just can't decide on a shape for the forend. I'm thinking a lot more taper at the bottom of the tip and possibly a 1.25" long ebony tip. Got any pictures of your favorite tip for a bolt action .22 rimfire rifle to share? Thanks.   CB Life itself is a gift. Live it up if you can. | ||
|
| One of Us |
It's just a basic overall shape for now. The grip will be left as-is until the grip cap gets here. Until then, it is off to the belt sanding table. The top of the comb will be straight front to back, the bottom of the butt will be slimmed down rearward to the heel, the sides forward of the grip will be slimmed, etc. As for the tip, I'm leaning towards a flat top and upswept underside from the end of the bottom metal forward to a much slimmer profile.
Life itself is a gift. Live it up if you can. | |||
|
| one of us |
I like a straight line from the front of the bottom metal to the bottom of the forend tip. I like the tip to be hemispherical unless the stock is fairly wide. On a wide stock, I like a profile round from the side and straight when viewed from the top. I am far from the expert in the field. Regards, Bill | |||
|
| one of us |
The forend is easy, like others have said, fix the grip area. How the forend is treated depends on how the rest of the rifle is styled. It all has to work together. If you have the skill to make the grip-comb-wrist area look right, you should be able to do the forend tip blindfolded and don't need any help from us in the peanut gallery. For what it is worth, in my opinion, many of the professional stock makers don't know how to handle the grip area and need to spend a few weeks looking over Duane or James Andersons shoulder and taking notes to learn how. But that's just my opinion, worth exactly what you had to pay for it.   John | |||
|
| One of Us |
Thanks Bill & John. The grip will have to wait. Got to have the cap first so I can make a guage for the grip contour this time. Spent a couple hours on it today. Heading down to the 'cave' to do more profiling shortly. Tip style has been chosen. Keep it coming. Much appreciated. More pics soon.
Life itself is a gift. Live it up if you can. | |||
|
| One of Us |

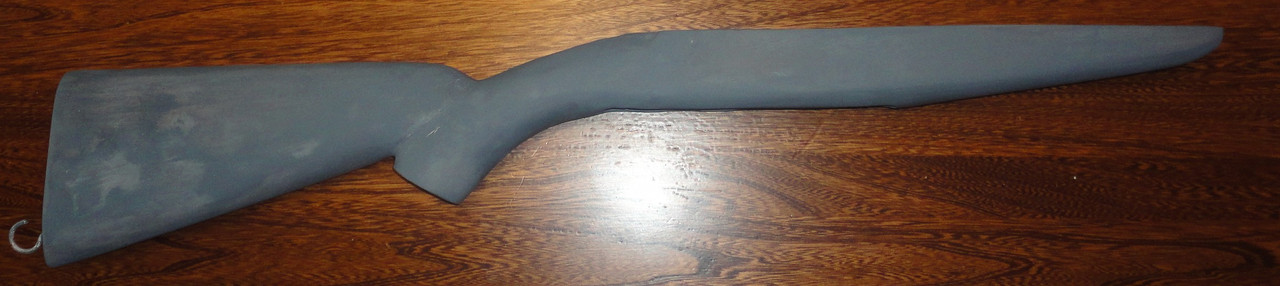

New tip shape, narrowed body, taper under the ejector box, reduced butt height, added LOP and striaghtened comb. Ebony tip or no tip is still under consideration.  Life itself is a gift. Live it up if you can. | |||
|
One of Us |
reverse. This is a Win 22 stock, strangely picked from the pile at the NYPD range.  | |||
|
| one of us |
Well, it's your stock, but I really don't like the forearm. Not saying it mightn't look OK when finished but not to my liking. This is not an opinion that matters, mind you! Regards, Bill | |||
|
| One of Us |
What would you suggest exactly Bill? I'm thinking more straight instead of curved along the bottom and I will definitely be rounding it off for some proper wrap-around checkering. The 2 screw grip cap is here. Damned Rikon band saw is giving me sh^t now. The old blade snapped and the new one pops off when I tighten the lever for the top wheel. So, I haven't made a profile guide for the grip.
Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Have you considered a schnabel tip ? | |||
|
| one of us |
I also like the schnable tip..Leave it in the bulk stage, In my opine, Its file time.. Ray Atkinson Atkinson Hunting Adventures 10 Ward Lane, Filer, Idaho, 83328 208-731-4120 rayatkinsonhunting@gmail.com | |||
|
| One of Us |
I have considered a schnable. I think an ebony tip gives it more class. Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Schnable-ize the ebony. | |||
|
| One of Us |
You did not identify the action, this would help with the feedback you receive. Win mod 52 is vastly different from a Kimber for example. Go back and read Gasgunners post. | |||
|
| One of Us |
All metal is Mauser MM410B. Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Richj's stock profile is a good start minus the forend. Looks like somebody tried to fix a screw up and kept going. | |||
|
| one of us |
The grip sez Schnable with the Prince of Wales grip, modify the cheek piece to a pancake Euro type. The bolt cut is poorly placed and totally wrong, Bondo it to move the side panel back a tad and recut the bolt cut into the side panel, is proper, but the bolt can be a rolled over the panel requiring no bolt cut on a 22. Just my two bits on what you have to work with..but the stock must suit you only.. Ray Atkinson Atkinson Hunting Adventures 10 Ward Lane, Filer, Idaho, 83328 208-731-4120 rayatkinsonhunting@gmail.com | |||
|
| One of Us |
Gull dang Rustoleum Enamel primer/paint crap. Still didn't dry completely after two days! The felt cushions on my vise stuck to it. Must be really old stock. 2 cans going in the trash. Can says fast drying. [when compared to our regular paint]. OK. I'm fine now. Had to vent............. Life itself is a gift. Live it up if you can. | |||
|
| one of us |
First, I would determine the forarm length I wanted. Then, I would establish the depth, at the tip. I would make the forearm a straight line from the tip to the front guard screw. The tip would be hemispherical with the center biased toward the bottom a bit. If I wanted to do a schnable, I would look to copy a Winchester 1895, complete with the ebony insert. With a schnable, a slight curvature of the forearm is OK, but it should be very minor. Again, these are my opinions and this doesn't make them right, except in my own mind! Regards, Bill. | |||
|
| One of Us |

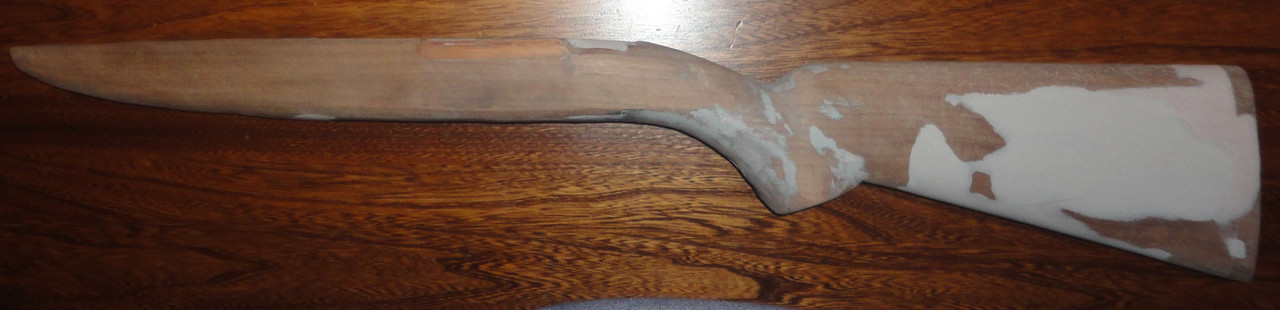

Final shape. Just need to mark the position of the ebony tip then it's off for duplication.  Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
 Right Side  Left Side If you're still looking for some suggestions here's a pattern for a Brno Model 2 Pre-1965 (Machined not cast), Actions made after 1965 were cast. As for some general recommendations I would look at reshaping the pistol grip area and the fore-end. If you intend to use a grip cap ensure that the pattern fits the grip cap. | |||
|
| One of Us |
Thanks Roger, Interesting points. I did change the angle of the grip cap. The duplicated stock will be here in another day or two. I intend to "tweak" the shape of grip a bit more once in hand. Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Roger Vardy, What size is your grip cap? Mine is a 1.3" X 1.8" and is way to large for this stock profile. CB Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Get a petit from Dressels just about right | |||
|
| One of Us |
If you can, post some pics of the duplicated stock after you get it. Thanks! | |||
|
| One of Us |

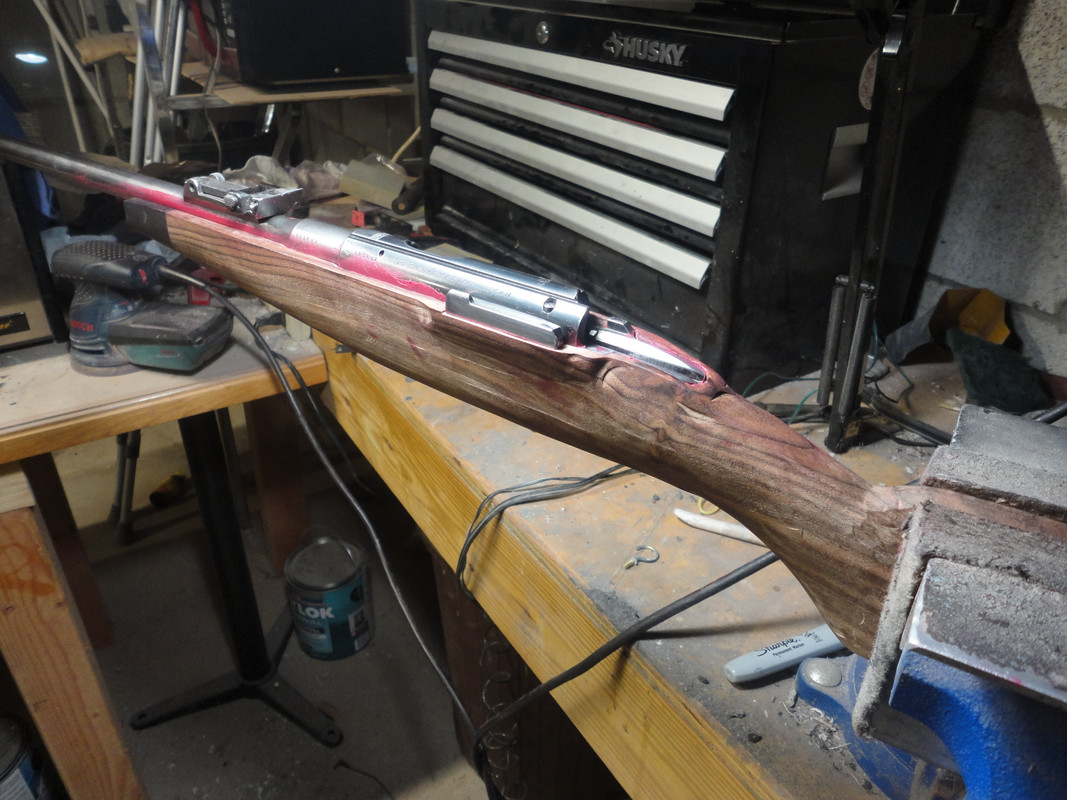

Sorry I'm late. Work in progress.....
Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
What is the pink stuff? | |||
|
| One of Us |
Lipstick. Ran out of inletting black. Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
Alrighty then! | |||
|
| One of Us |

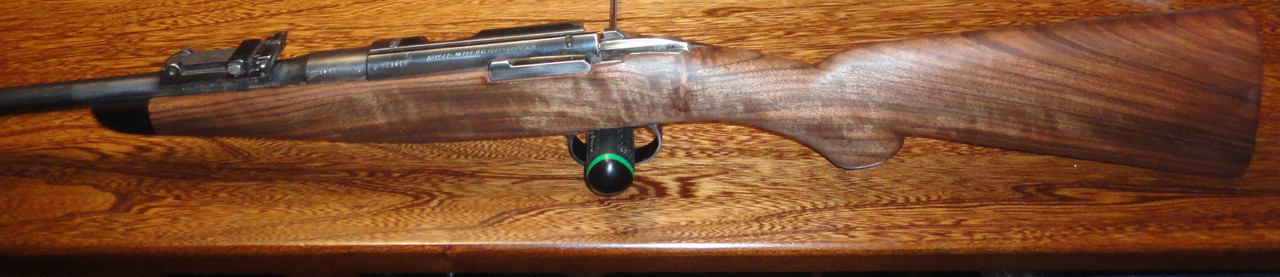

Sorry about the poor picture. "The final fore end". url=https://postimg.cc/nCQQS7ZY]  [/url]Life itself is a gift. Live it up if you can. | |||
|
| One of Us |
I think you nailed it. | |||
|
| One of Us |
Nice! I draw everything out on paper first. usually several versions before I take the rasp to it  'Regardless, you got that one just right. | |||
|
| one of us |
One can hardly ever cut too much wood off, but always start with an over abundance of that stuff..and remember you can take it off, but,ya cant put,er back..  I like my patterns about 3/32 or more oversize and in need of more file work and scaping..and I lean heavy on lean and mean..Ray Atkinson Atkinson Hunting Adventures 10 Ward Lane, Filer, Idaho, 83328 208-731-4120 rayatkinsonhunting@gmail.com | |||
|
| One of Us |
The pistol grips I use are 43.5mm x 31.25 mm and the thickness is 6.5mm, for you yanks that's 1.71" x 1.23" x O.255". (This was referenced from Jerry Fisher's small caps.) | |||
|
| One of Us |
Thanks Roger, Stock has been tweaked to my liking and is finished except for a few dust nubs. It's off for checkering. All replies appreciated. CB
Life itself is a gift. Live it up if you can. | |||
|
